51.2V100Ah-300Ah
Title
Modular Stackable Lithium Battery System 51.2V 100Ah–300Ah
Selling Points
Modular stackable LiFePO4 energy storage system with flexible capacity from 5kWh to 15kWh per unit, designed for residential and commercial solar energy storage applications.
Key Strengthes

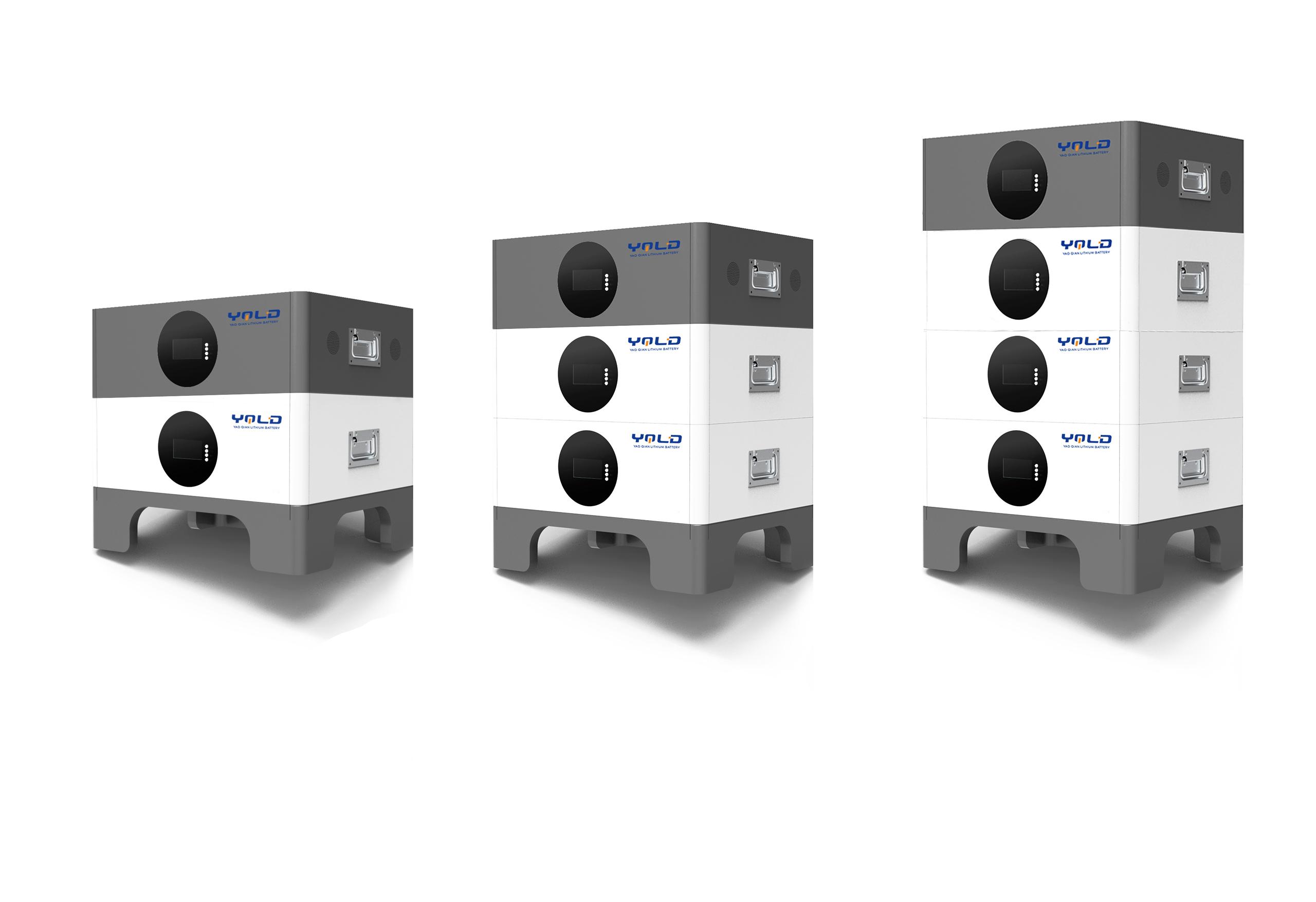

⚡ Modular & Scalable Design
Stackable structure allows flexible capacity expansion without rewiring
🔋 High Safety LiFePO4 Battery
Stable chemistry with long-term thermal and electrical safety
🌞 Grid / Off-grid Compatible
Supports both on-grid and off-grid solar systems
📊 Smart Monitoring System
Intelligent display + real-time operating status visualization
🔌 Multiple Communication Protocols
Supports RS485 / CAN communication with most inverters
🛡️ Industrial Protection Design
Metal shell structure with IP54 protection level
Introduction
The Stackable Energy Storage Battery System is a high-performance modular lithium energy storage solution designed for residential, commercial, and solar hybrid applications.
Based on advanced LiFePO4 battery technology, this system ensures high safety, long service life, and stable performance under complex working environments. Its stackable modular design allows users to freely expand energy capacity according to different power requirements, making it ideal for scalable energy storage projects.
The system supports both grid-tied and off-grid operation modes, enabling peak shaving, energy shifting, and backup power supply. With built-in intelligent BMS and multiple communication protocols, it can seamlessly integrate with mainstream hybrid inverters.
Applications
Residential solar energy storage system
Villa & household backup power system
Solar self-consumption optimization
Peak shaving and valley filling
Off-grid power systems
Telecom backup power
Specifications
| Item | Specification |
|---|---|
| Battery Model | IFP-51.2V100Ah / 200Ah / 300Ah |
| Nominal Voltage | 51.2V |
| Typical Capacity | 100Ah / 200Ah / 300Ah |
| Working Current | 150A |
| Peak Current | 160±5A |
| Cut-off Voltage | 40V |
| Charging Voltage | 58.4V |
| Standard Charge Current | 150A |
| Charging Mode | CC / CV |
| Operating Temp (Charge) | 0°C ~ +45°C |
| Operating Temp (Discharge) | -20°C ~ +60°C |
| Communication | RS485 / CAN |
| Case Material | Metal shell |
| Protection Level | IP54 |
| Weight | 50kg / 130kg / 180kg ±0.5kg |
| Dimensions | 500×533×453mm / 685×533×453mm / 870×533×453mm |
| Cycle Life | ≥2000 cycles (standard) / 6000+ optional upgrade |
FAQ
Q1: Can this system work with solar panels?
Yes, it is fully compatible with PV solar systems and hybrid inverters.
Q2: Can I expand capacity later?
Yes, the modular stackable design allows easy expansion.
Q3: What inverters are supported?
Compatible with most mainstream brands such as Deye, Growatt, GoodWe, Victron.
Q4: Is it suitable for off-grid use?
Yes, it supports both on-grid and off-grid operation modes.
