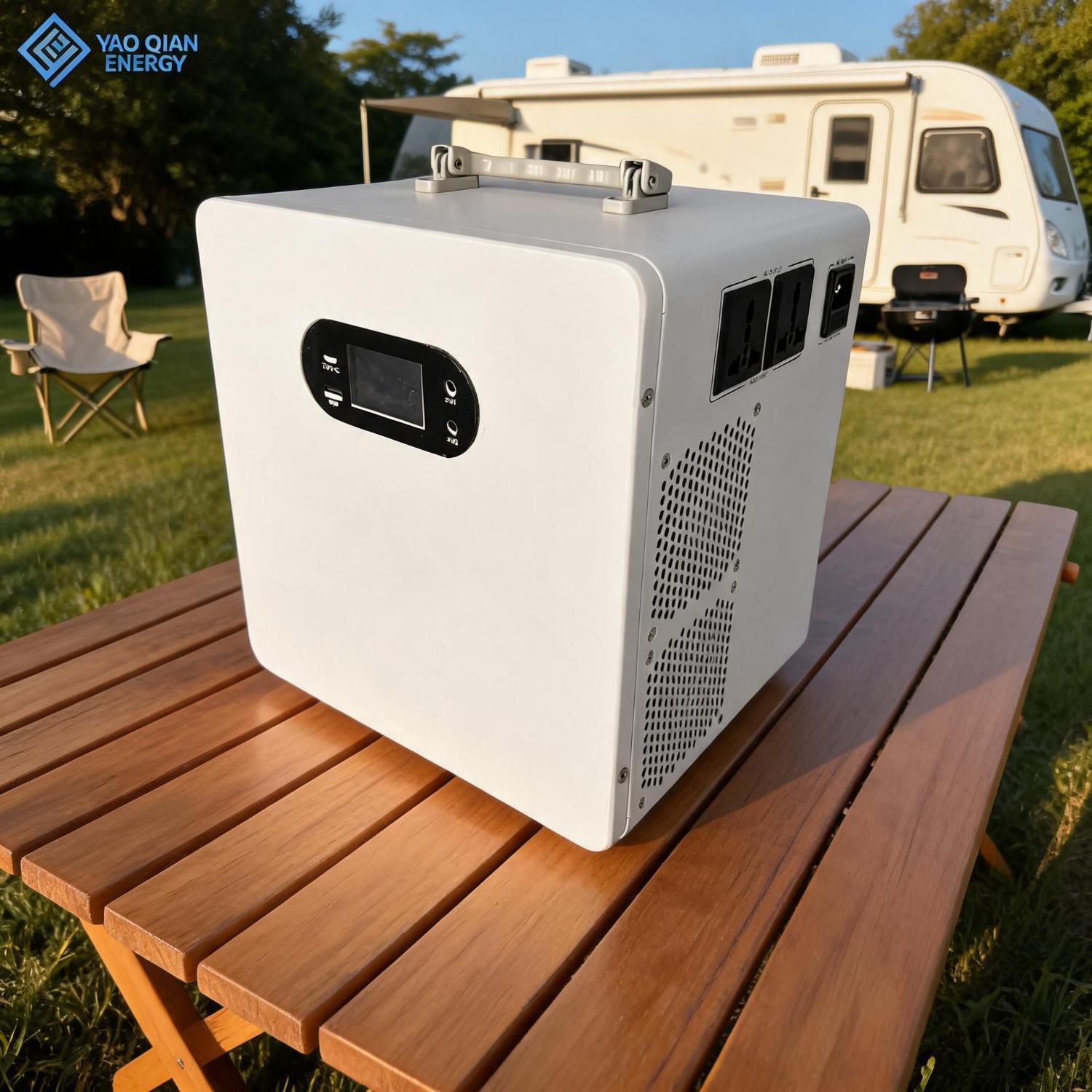

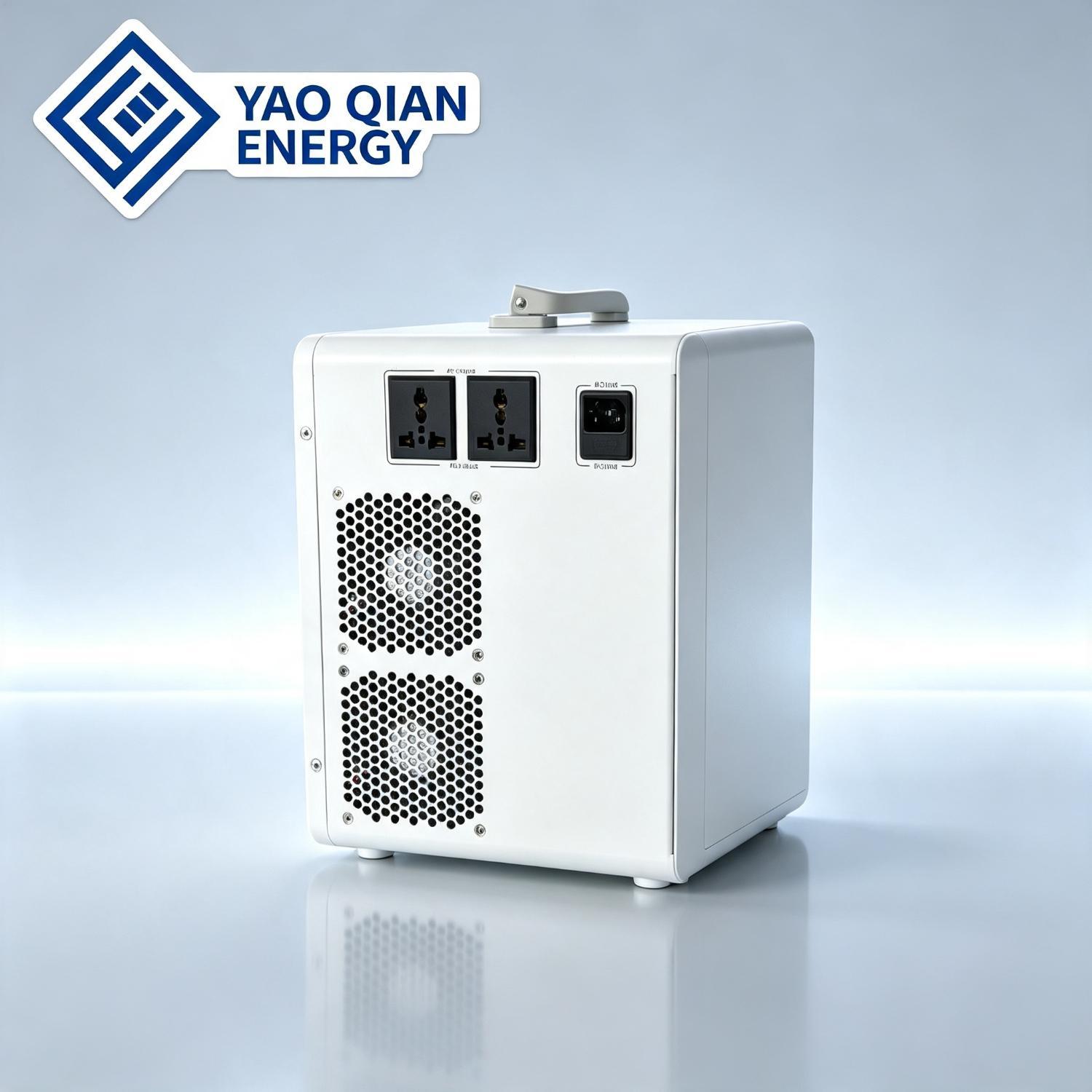

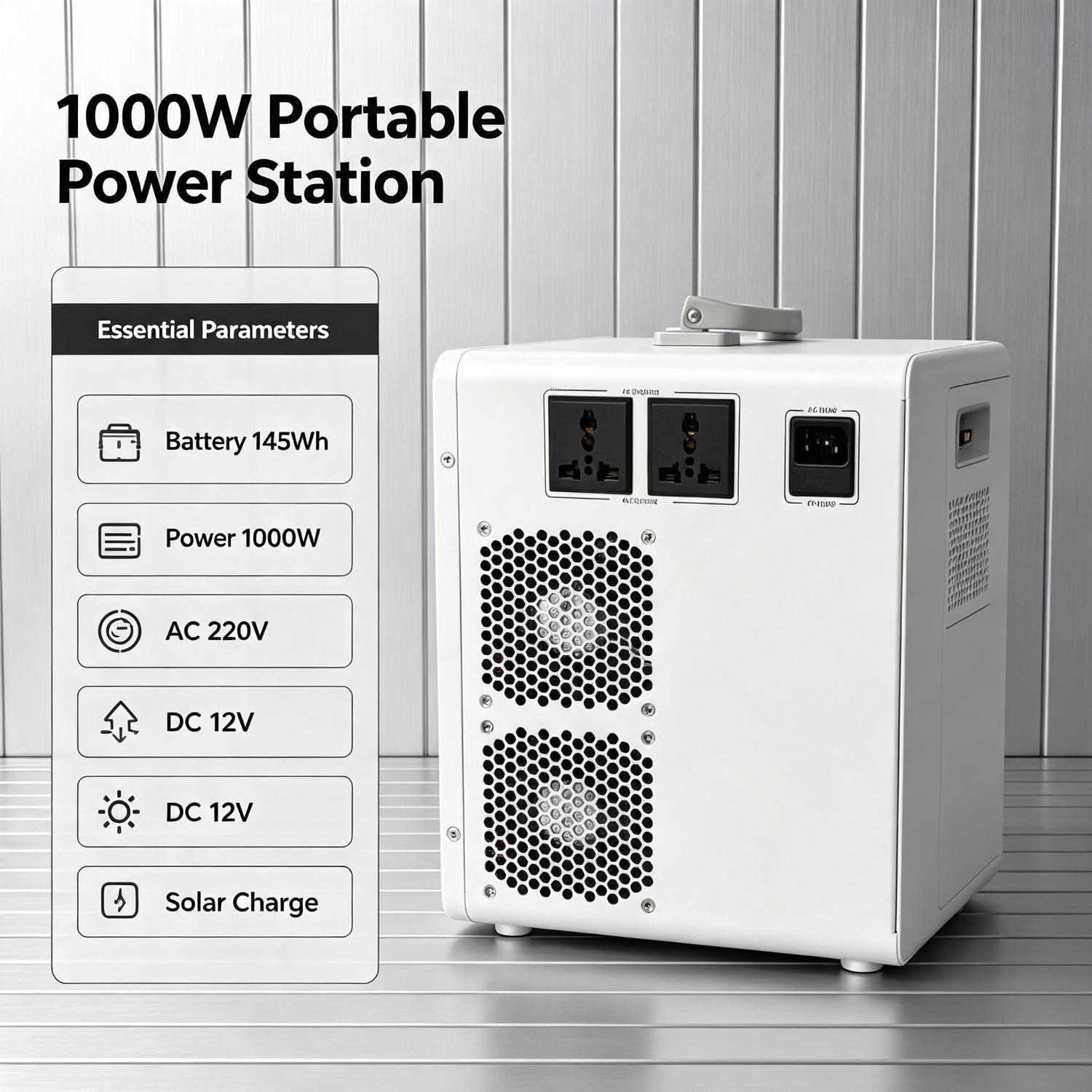

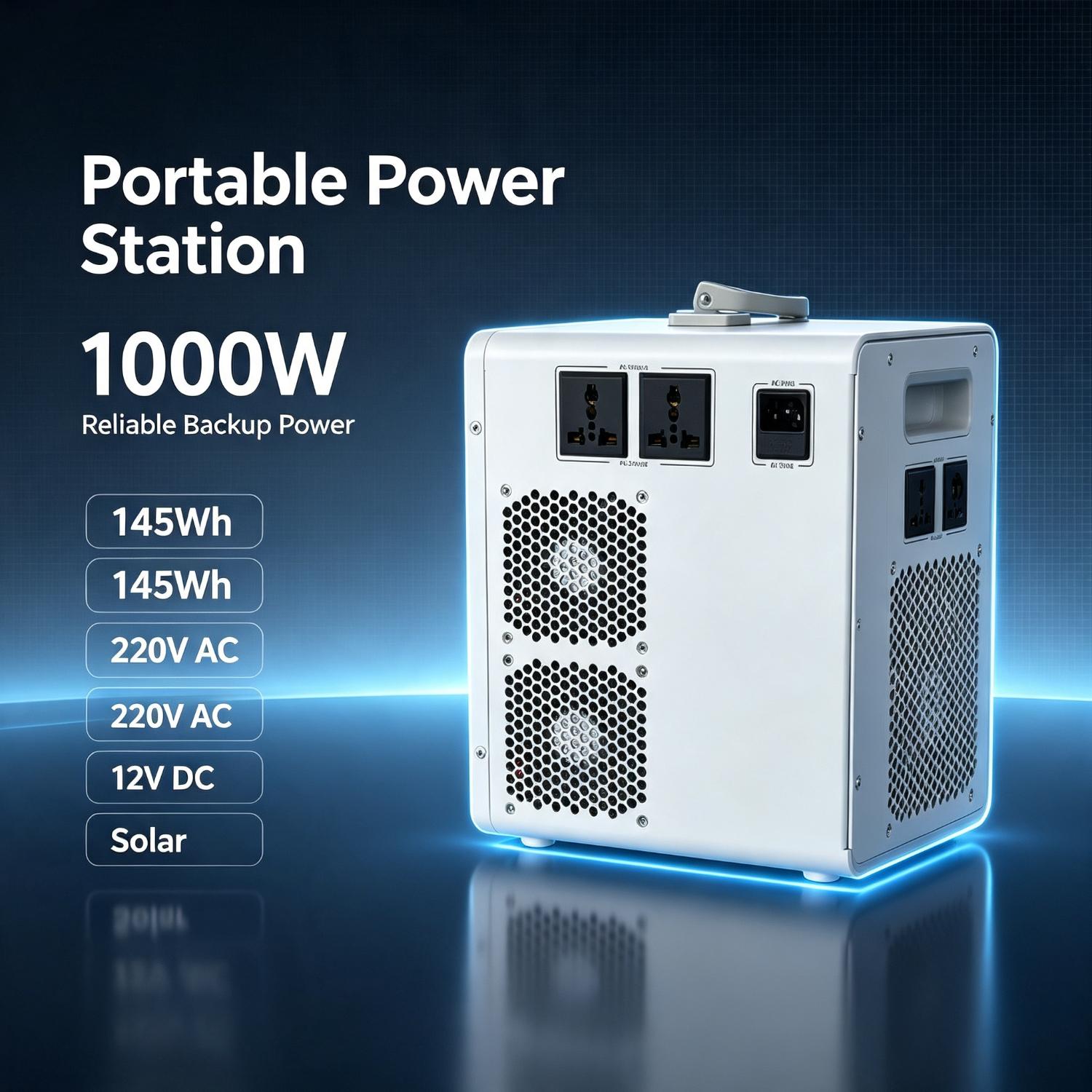

1000W LiFePO4 Portable Power Station
Product Highlights
1. 1000W HIGH POWER OUTPUTPowerful 1000W output for a wide range of outdoor and emergency applications.
2. PURE SINE WAVE OUTPUTProvides stable and clean power for sensitive electronic devices.
3. FAST SOLAR CHARGINGSupports up to 550W PV input for efficient renewable energy charging.
4. UPS BACKUP POWERSeamless power switching within 20ms for reliable backup protection.
5. COMPACT & PORTABLE DESIGNLightweight 10.5kg design with a compact body for easy transportation.
Specification
Item / Features | 500W Portable Power Station | 1000W Portable Power Station |
Rated Output Power | 500W | 1000W |
AC Input | ||
Rated Input Voltage | 230VAC | 230VAC |
Input Voltage Range | 90-280VAC | 90-280VAC |
Input Frequency Range | 45-65Hz | 45-65Hz |
Input Power Factor | >0.95 | >0.95 |
AC Output | ||
Maximum Output Power | 500W | 1000W |
Rated Output Voltage | 208V / 220V / 230V / 240V | 208V / 220V / 230V / 240V |
Rated Output Frequency | 50Hz±0.5% | 50Hz±0.5% |
Output Efficiency | ≥99% | ≥99% |
Overload Capability | CP500W, shutdown below 170VAC | CP500W, shutdown below 170VAC |
Output Waveform | Pure Sine Wave | Pure Sine Wave |
Harmonic Distortion (THD) | <3% Linear Load; <5% Non-linear Load | <3% Linear Load; <5% Non-linear Load |
UPS Switching Time | ≤20ms | ≤20ms |
USB Output | 5V/1A | 5V/1A |
PV Input (Solar Input) | ||
PV Input Voltage Range | 11-55VDC | 11-55VDC |
Maximum PV Input Power | 300W | 550W |
Maximum Input Current | 10A | 15A |
Maximum Output Current | 80A | 100A |
Battery Characteristics | ||
Battery Type | Lithium Iron Phosphate Battery (LiFePO4) | Lithium Iron Phosphate Battery (LiFePO4) |
Rated Battery Voltage | 3.2V | 3.2V |
Battery Capacity | 314Ah | 314Ah × 2 |
Battery Voltage Range | 3.0-3.65VDC | 6.0-7.3VDC |
Battery Energy | 1004Wh | 2009Wh |
Other Features | ||
Communication Interface | USB (Serial Interface, Configurable) | USB (Serial Interface, Configurable) |
Operating Temperature | -10℃~40℃ | -10℃~40℃ |
Storage Temperature | -15℃~60℃ | -15℃~60℃ |
Operating / Storage Humidity | 5%-95% (Non-condensing) | 5%-95% (Non-condensing) |
Noise Level | ≤50dB | ≤50dB |
Working Altitude | ≤3000m (Derating by 10% every additional 1000m) | ≤3000m (Derating by 10% every additional 1000m) |
Product Dimension (L×W×H) | 255×155×315mm | 285×230×315mm |
Net Weight | 10.5kg | 10.5kg |
