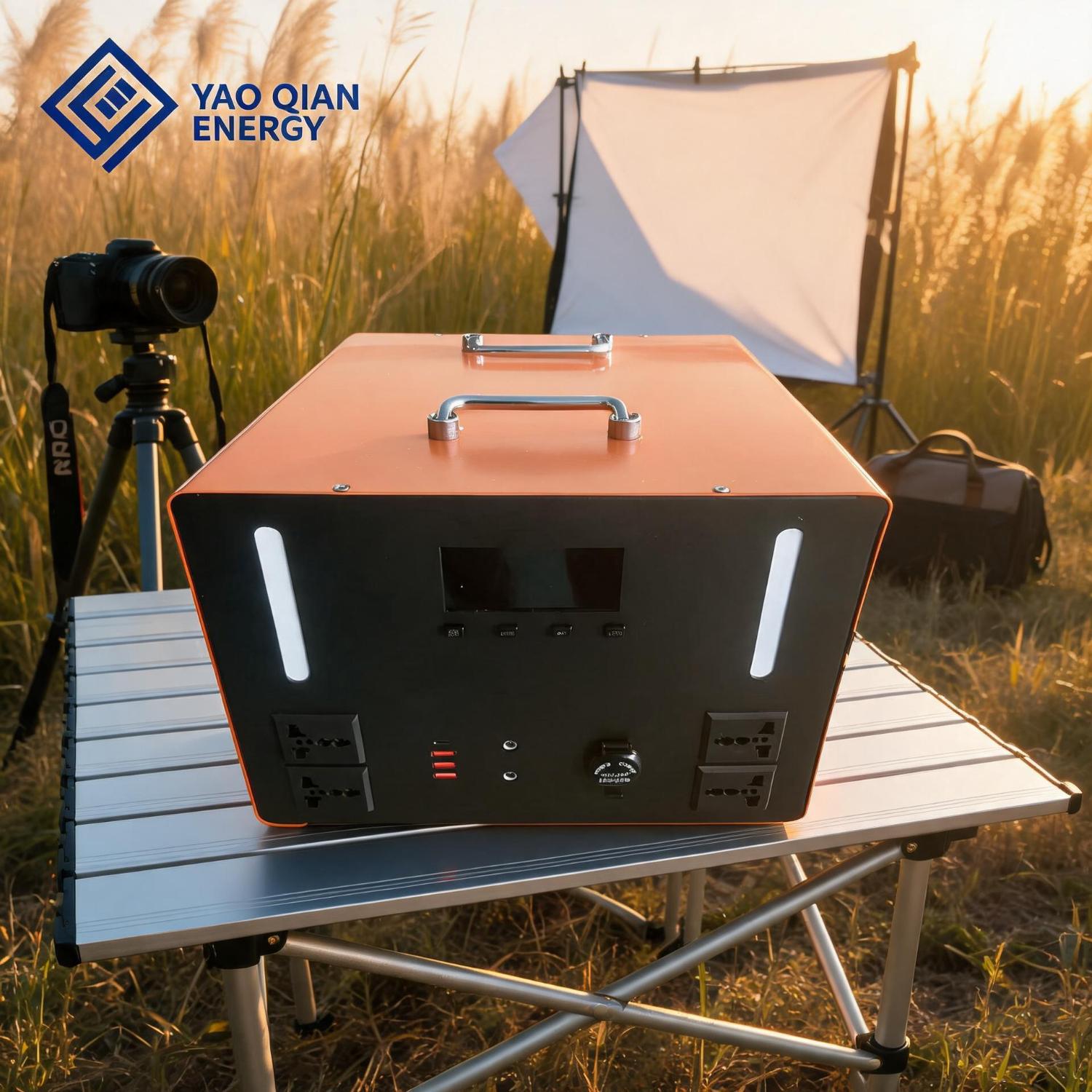

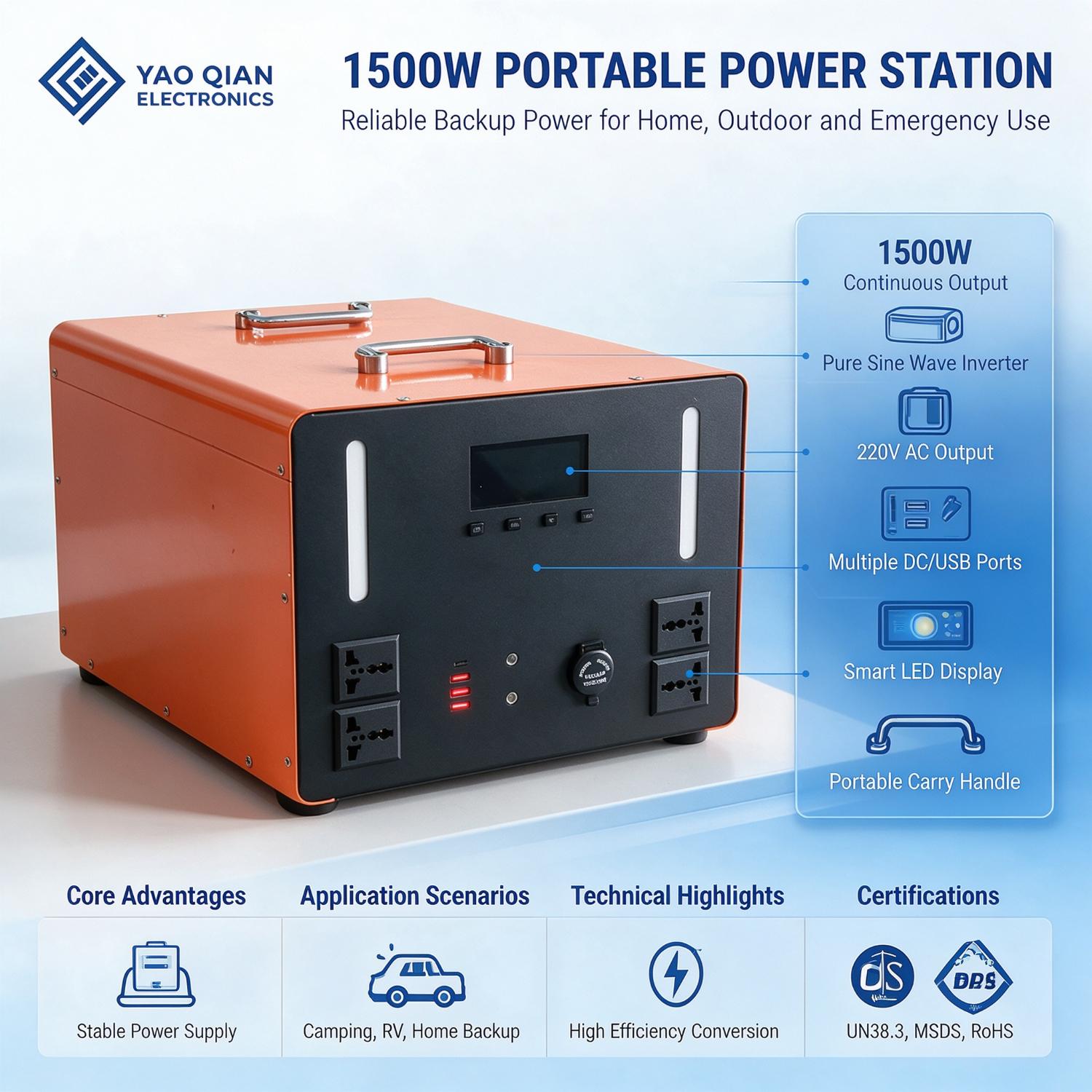

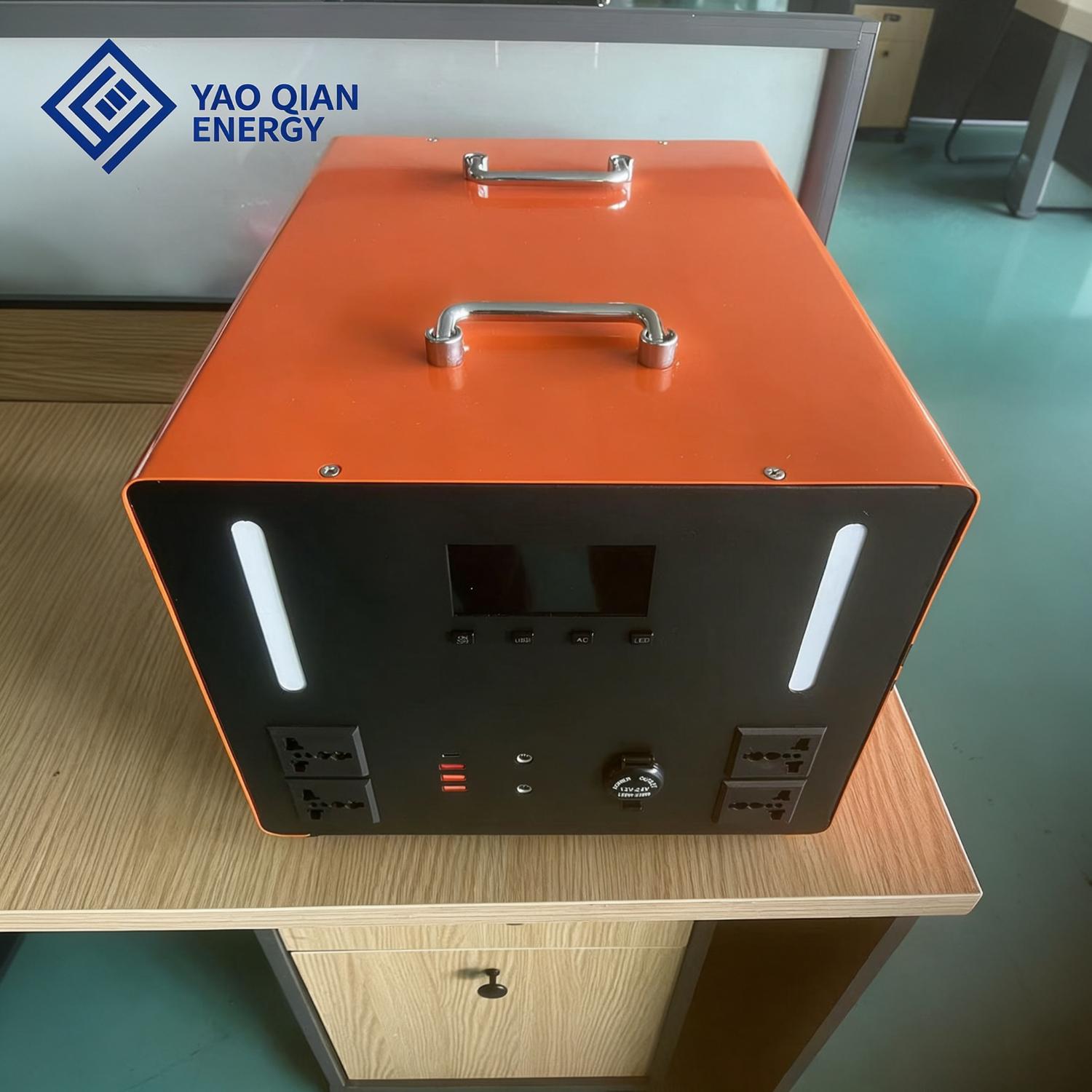

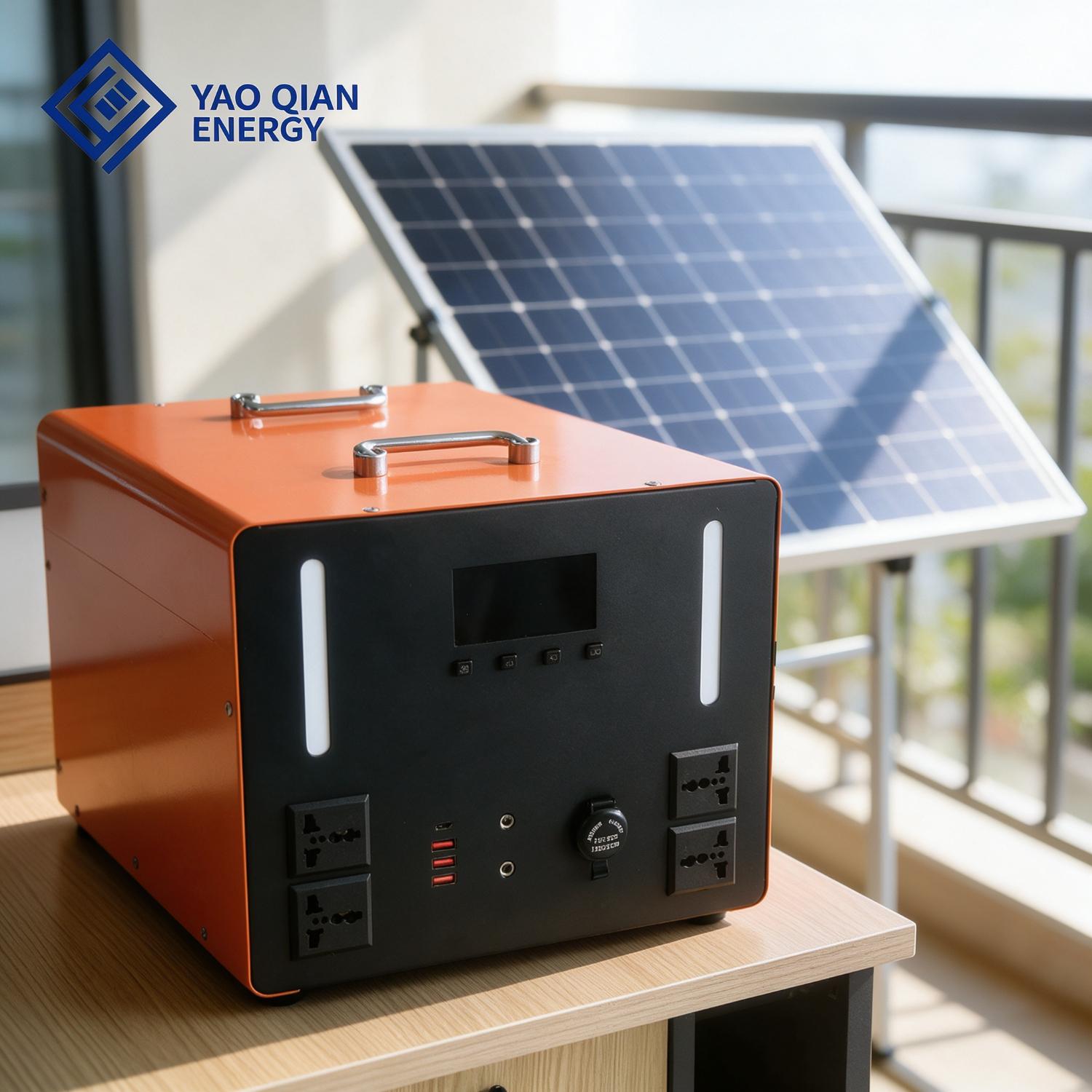

1500W 3kWh Portable Power Station
Product Highlights
1500W Continuous / 3000W Peak Pure Sine Wave Clean stable AC power for appliances, motors and sensitive electronics.
3072Wh Long-Life LiFePO4 Battery ≥3000 charge cycles (80% DOD), far longer lifespan than lead-acid batteries.
High-Efficiency MPPT Dual Charging Supports both grid AC and solar PV charging with ≥96% tracking efficiency.
All-in-One Output Ports AC, USB-A, Type-C and DC ports power multiple devices simultaneously.
Full BMS Protection + Portable Build Complete safety protections; compact design for home backup and outdoor use.
Specification
Parameter | Specification | |
General Specifications | Product Name | 1500W Portable Power Station |
Model | YQ-PW1500W / 3kWh | |
Dimensions (L×W×H) | 400 × 310 × 250 mm | |
Net Weight | 26.8 kg | |
Operating Temperature | -10°C to +45°C | |
Charging Temperature | 0°C to +40°C | |
Battery System | Battery Type | LiFePO4 (Lithium Iron Phosphate) |
Nominal Voltage | 24V DC | |
Rated Capacity | 120Ah / 3072Wh | |
Cycle Life | ≥3,000 cycles (80% DOD) | |
Charge Cut-off Voltage | 29.2V DC | |
Low-Voltage Protection | 21.0V DC | |
Inverter AC Output | Continuous AC Power | 1500W |
Surge Peak Power | 3000W (5 seconds) | |
Output Waveform | Pure Sine Wave | |
Rated AC Output Voltage | 220VAC (Compatible with 230V/240VAC) | |
Output Frequency | 50Hz | |
Inverter Efficiency | ≥88% | |
No-Load Standby Power | <12W | |
Charging Input | AC Input Voltage Range | 90-280VAC (50/60Hz) |
AC Charging Method | AC-DC Adapter Charging | |
PV Max Open Circuit Voltage | ≤50V DC | |
PV Working Voltage Range | 30-45V DC (Start Voltage ≥28V) | |
MPPT Tracking Efficiency | ≥96% | |
Output Ports | AC Output Sockets | 2 × AC 220V Outlets |
DC Output Port | 24V DC | |
Car Cigarette Lighter Socket | 24V 10A (Max 240W) | |
USB-A Output | 5V 2.4A | |
Type-C Output | 5V-12V Adaptive Fast Charge | |
Illumination | Multi-mode Emergency LED Light |
