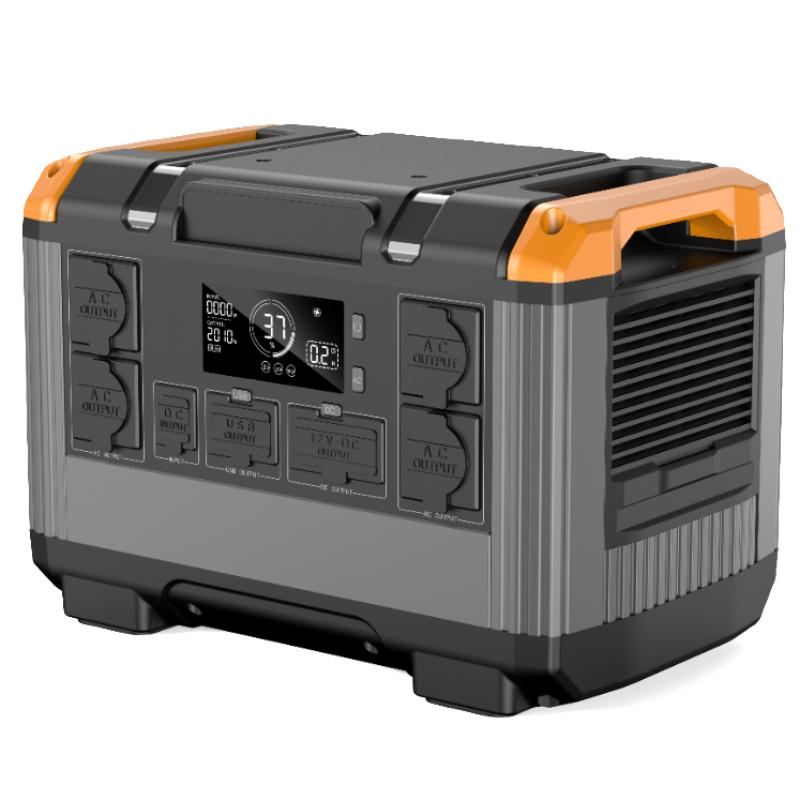

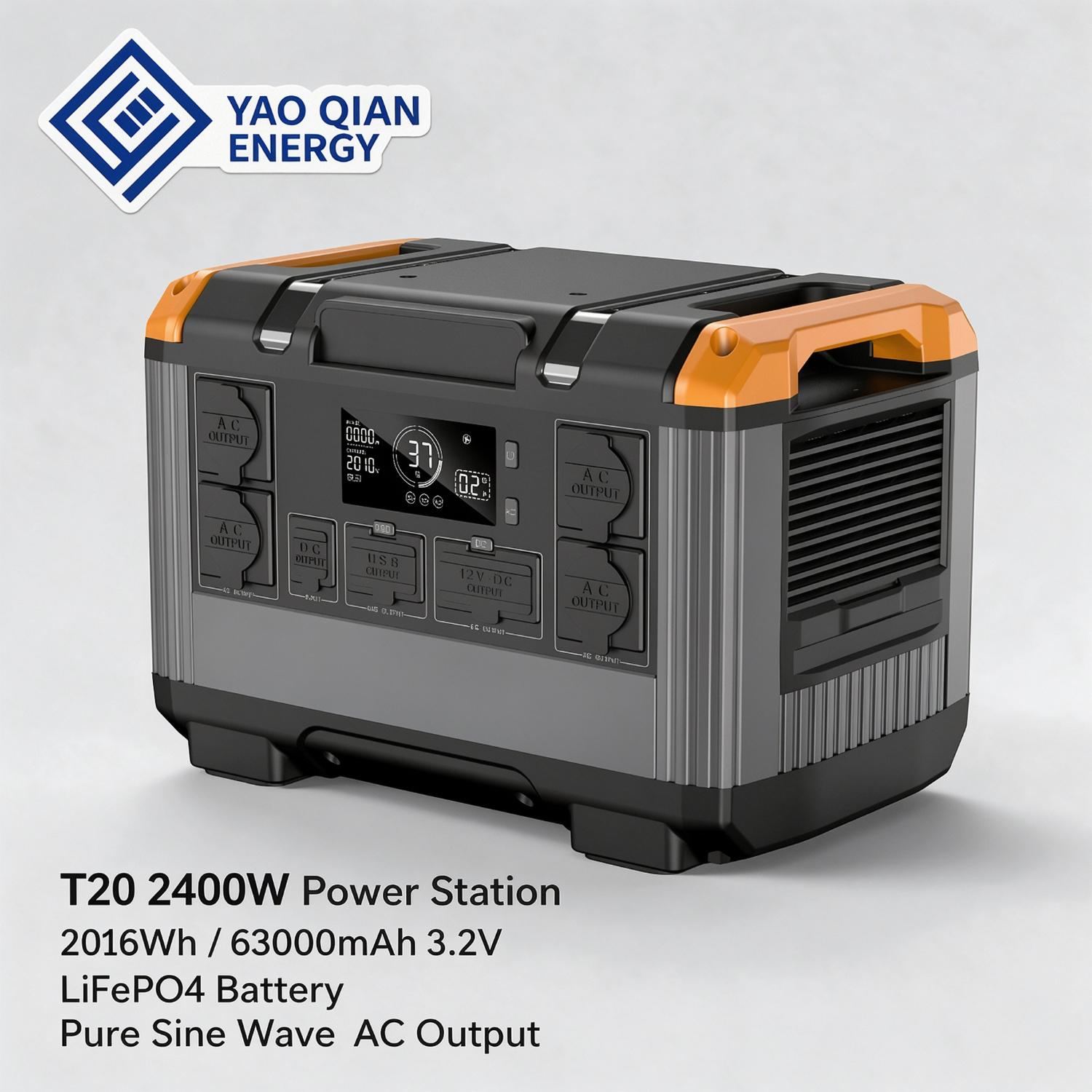

2400W 63000mAh Portable Power Station(YQ-T20)
Product Highlights
01. Powerful 2400W Pure Sine Wave Output
Delivers 2400W continuous AC power through four pure sine wave AC outlets for high-power appliances, equipment and demanding applications.
02. 2016Wh LiFePO4 Energy Storage
Built-in LiFePO4 battery provides 2016Wh / 630000mAh capacity for long-duration backup power and energy storage applications.
03. 650W MPPT Solar Charging
Supports 12–80V / 8.5A MPPT solar charging with up to 650W input, while a 1200W solar configuration is optionally available.
04. 10ms UPS Switching
Integrated UPS functionality provides switching within 10ms to help maintain continuous power supply for sensitive equipment and backup applications.
05. High-Power AC & DC Connectivity
Features four AC outputs, four QC3.0 USB ports, two 100W Type-C ports, dual regulated DC outputs and a regulated 13.5V/10A car socket.

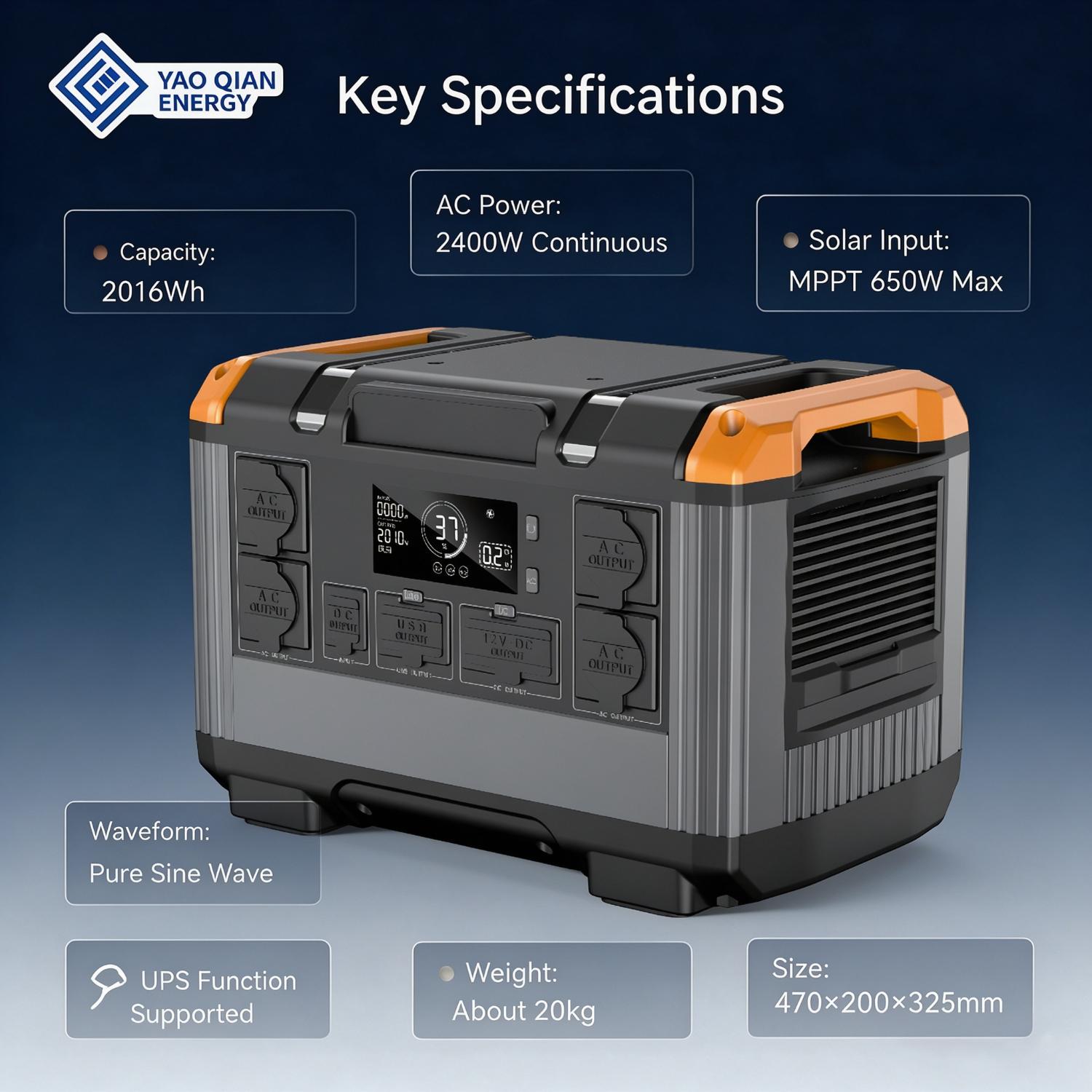

Specification
Category | Parameter | Specification |
|---|---|---|
General Specifications | Product Name | 2400W Portable Power Station |
Model | T20 | |
Product Type | Portable Power Station | |
Battery System | Built-in Battery | LiFePO4 |
Battery Capacity | 2016Wh / 630000mAh / 3.2V | |
AC Input | Maximum AC Input | 1600W Max |
Full Charging Time | About 1.5 Hours | |
Solar Charging | Solar Panel Charging | 12V–80V / 8.5A MPPT |
Standard Solar Input | Max 650W | |
Optional Solar Input | 1200W | |
AC Output | Continuous Output Power | 2400W |
AC Output | 4 × AC Pure Sine Wave Output | |
DC Output | USB QC 3.0 | 4 × USB, 5V–9V / 2A, Max 18W |
Type-C Port | 2 × Type-C, 5V–15V / 3A, 20V / 5A, Max 100W | |
DC5521 Output | 2 × DC, 13.5V / 10A, Regulated Voltage | |
Cigarette Socket | 1 × 13.5V / 10A, Regulated Voltage | |
UPS | UPS Switching Time | Less Than 10ms |
Physical Specifications | Product Dimension | 470 × 290 × 325 mm |
Net Weight | About 26 kg |
