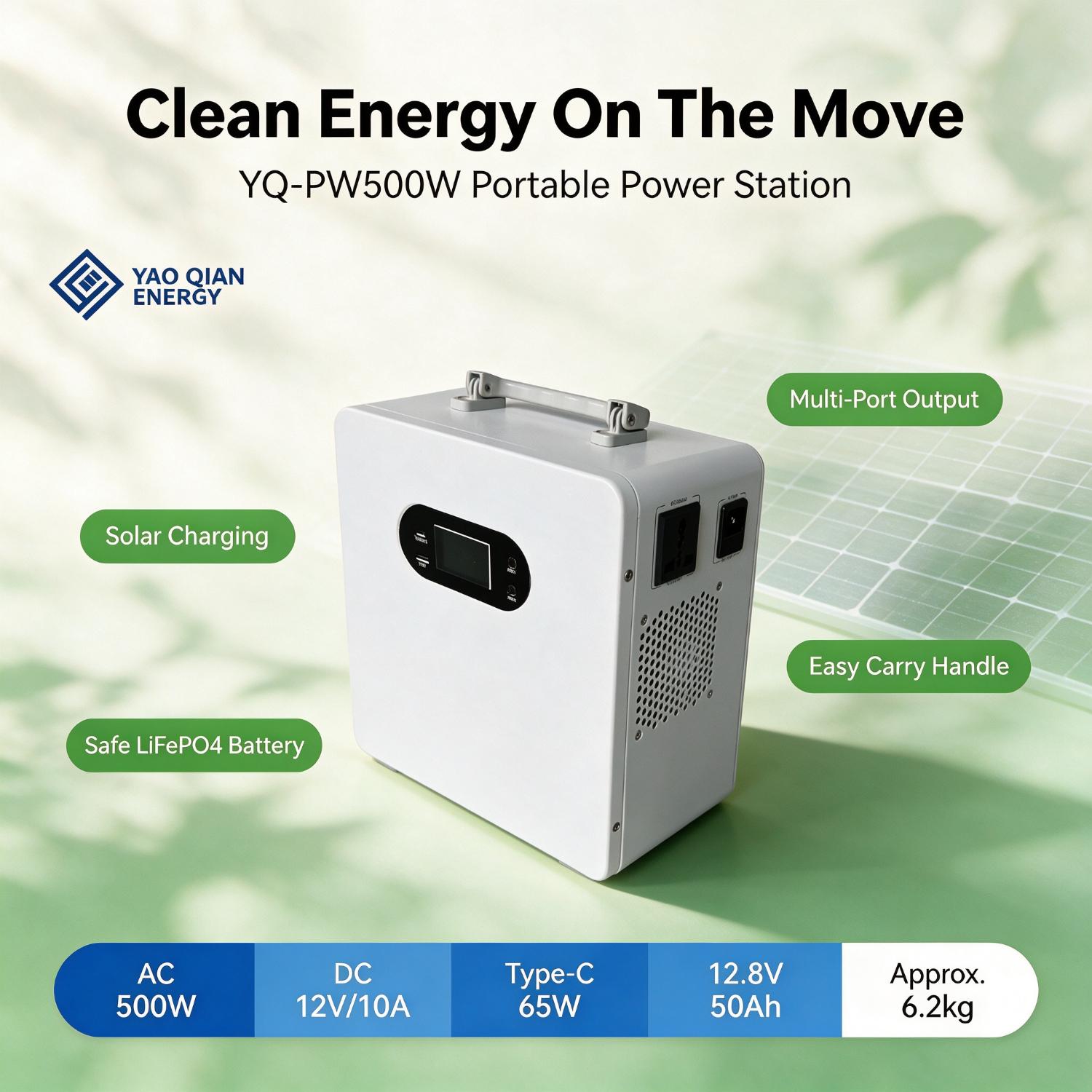

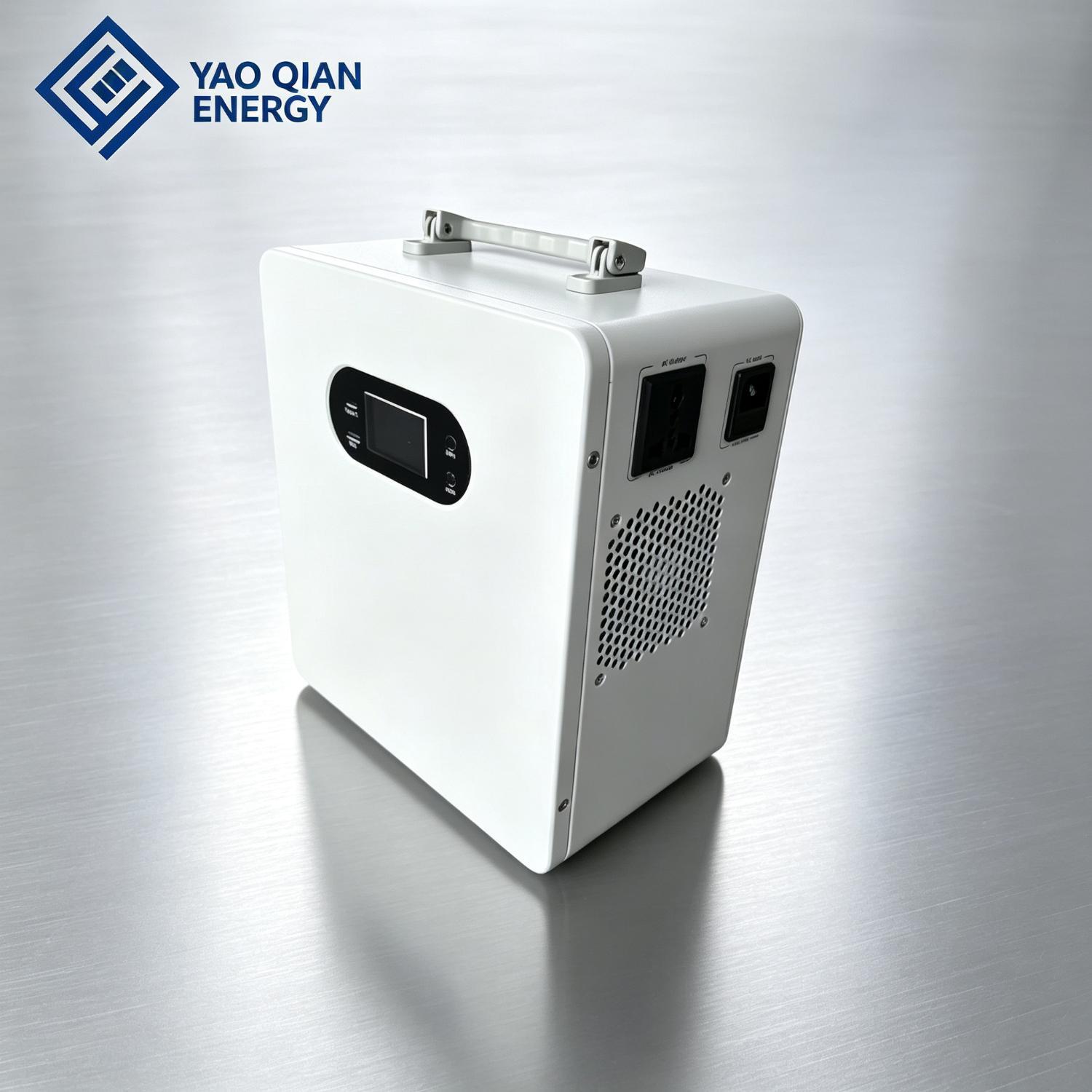

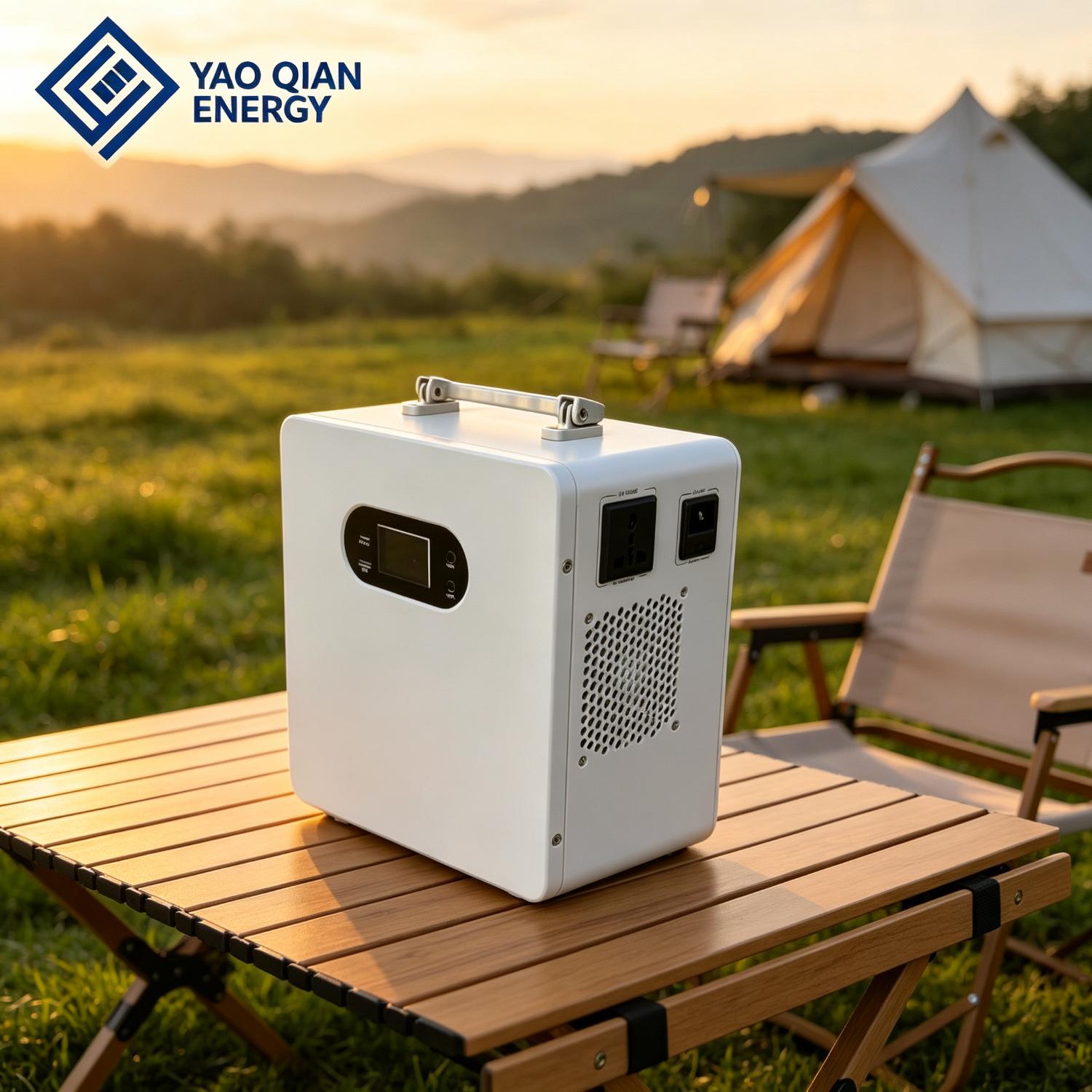

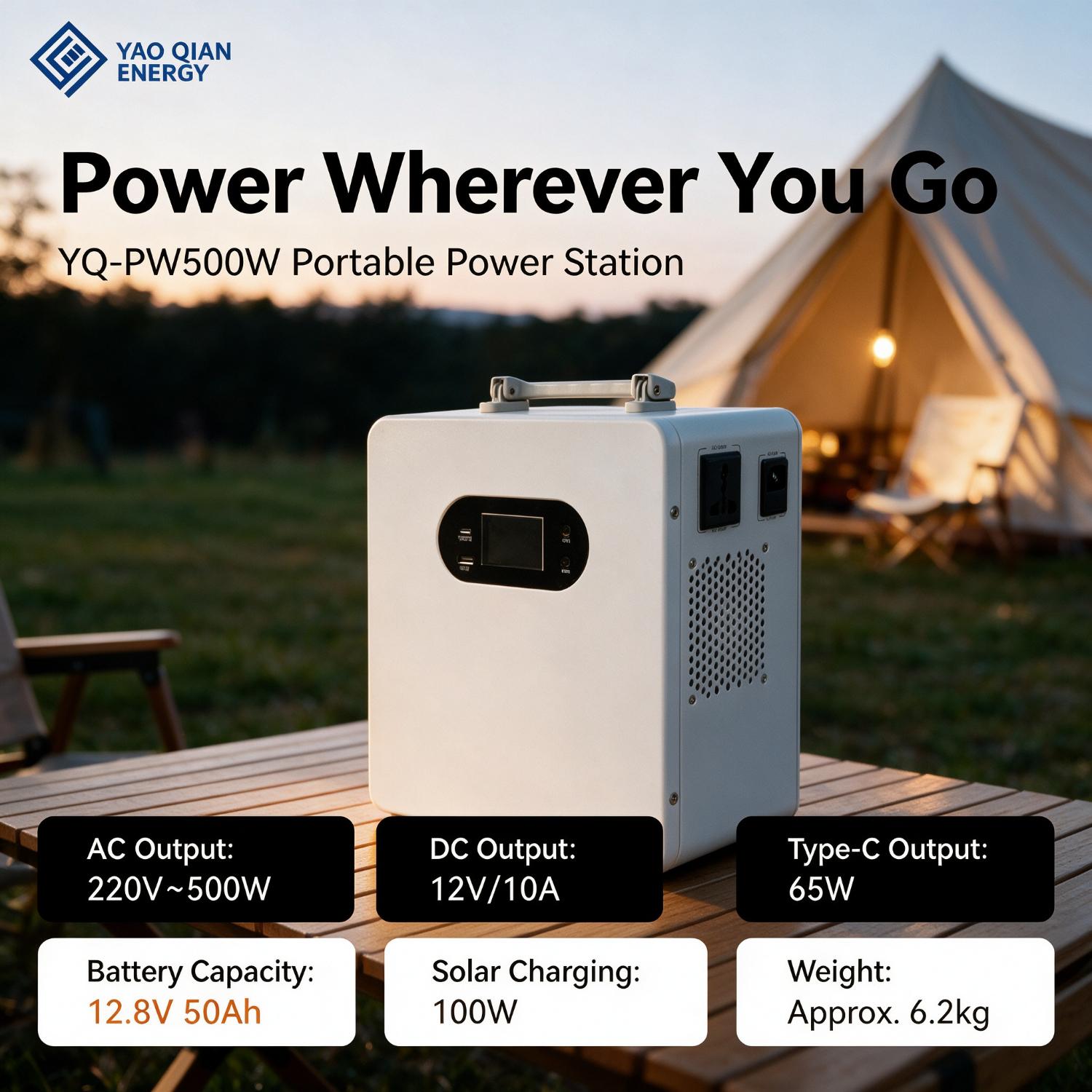

500W Outdoor Portable Power Station
Product Highlights
1. Power Anywhere, Anytime: Enjoy reliable electricity wherever life takes you. This portable power station delivers stable energy for camping, RV trips, outdoor adventures, and emergencies.
2. Fuel-Free & Silent Energy Solution: Replace traditional gasoline generators with clean, quiet and eco-friendly battery power without noise, fumes or maintenance costs.
3. Long-Lasting LiFePO4 Battery Technology: Built with premium lithium iron phosphate cells, offering enhanced safety, excellent thermal stability and thousands of charging cycles.
4. One Power Station, Multiple Applications: Designed to support outdoor camping, RV travel, home backup, remote work, and off-grid living with versatile output ports.
5. Portable Design Built for Adventure: Compact structure with an ergonomic handle makes it easy to carry and quickly deploy wherever power is needed
Specification
Item / Features | 500W Portable Power Station | 1000W Portable Power Station |
Rated Output Power | 500W | 1000W |
AC Input | ||
Rated Input Voltage | 230VAC | 230VAC |
Input Voltage Range | 90-280VAC | 90-280VAC |
Input Frequency Range | 45-65Hz | 45-65Hz |
Input Power Factor | >0.95 | >0.95 |
AC Output | ||
Maximum Output Power | 500W | 1000W |
Rated Output Voltage | 208V / 220V / 230V / 240V | 208V / 220V / 230V / 240V |
Rated Output Frequency | 50Hz±0.5% | 50Hz±0.5% |
Output Efficiency | ≥99% | ≥99% |
Overload Capability | CP500W, shutdown below 170VAC | CP500W, shutdown below 170VAC |
Output Waveform | Pure Sine Wave | Pure Sine Wave |
Harmonic Distortion (THD) | <3% Linear Load; <5% Non-linear Load | <3% Linear Load; <5% Non-linear Load |
UPS Switching Time | ≤20ms | ≤20ms |
USB Output | 5V/1A | 5V/1A |
PV Input (Solar Input) | ||
PV Input Voltage Range | 11-55VDC | 11-55VDC |
Maximum PV Input Power | 300W | 550W |
Maximum Input Current | 10A | 15A |
Maximum Output Current | 80A | 100A |
Battery Characteristics | ||
Battery Type | Lithium Iron Phosphate Battery (LiFePO4) | Lithium Iron Phosphate Battery (LiFePO4) |
Rated Battery Voltage | 3.2V | 3.2V |
Battery Capacity | 314Ah | 314Ah × 2 |
Battery Voltage Range | 3.0-3.65VDC | 6.0-7.3VDC |
Battery Energy | 1004Wh | 2009Wh |
Other Features | ||
Communication Interface | USB (Serial Interface, Configurable) | USB (Serial Interface, Configurable) |
Operating Temperature | -10℃~40℃ | -10℃~40℃ |
Storage Temperature | -15℃~60℃ | -15℃~60℃ |
Operating / Storage Humidity | 5%-95% (Non-condensing) | 5%-95% (Non-condensing) |
Noise Level | ≤50dB | ≤50dB |
Working Altitude | ≤3000m (Derating by 10% every additional 1000m) | ≤3000m (Derating by 10% every additional 1000m) |
Product Dimension (L×W×H) | 255×155×315mm | 285×230×315mm |
Net Weight | 10.5kg | 10.5kg |
