YQ-PE50/PE100/PE150/PE200
Title

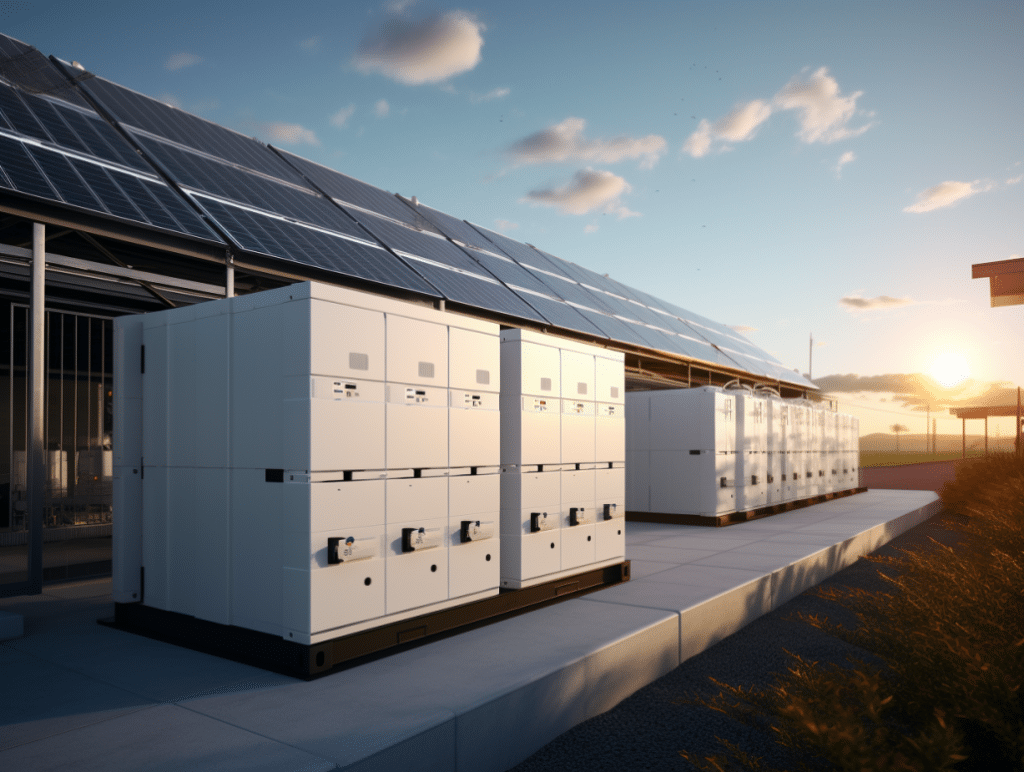

YQ-PE Series Industrial & Commercial Energy Storage System
High-efficiency, modular, and cloud-monitored energy storage designed to optimize energy costs and secure backup power for commercial & industrial facilities.
⚡ Capacity: 50kWh / 100kWh / 150kWh / 200kWh🛡️ Protection: IP54 Outdoor Rated
Key Advantages
📊
Maximum Efficiency
Delivers up to 98.8% system conversion efficiency, ensuring minimal energy loss during operation and accelerating financial returns.
🛠️
Plug-and-Play Assembly
Features an optimized modular structure. Pre-engineered and factory-tested components reduce installation complexity and on-site labor requirements.
❄️
Integrated Safety Controls
Equipped with internal climate regulation (forced air/fan cooling) and specialized built-in fire suppression systems for multi-layered security.
🌐
Remote Cloud Monitoring
Features a built-in local and remote EMS, enabling automated operations without local technical staff present.
Optimized Energy Management Topology
Our C&I solution coordinates PV solar production, the utility grid, localized battery storage, and active building loads to lower operational expenses and prevent business interruptions.
On/Off Grid Support: Seamlessly transfers between grid connection and backup power configurations.
Peak Shaving: Automatically discharges during peak tariff periods to bypass high utility demand charges.
Microgrid Compatible: Integrates with local diesel gensets or distributed wind systems.
System Architecture Scheme
☀️ Solar PV → 🔋 Power Cabinet & BESS ←→ ⚡ Grid
↓
🖥️ Central EMS Control → 🏢 Industrial / Commercial Load
Specifications
| Parameter | YQ-PE50 | YQ-PE100 | YQ-PE150 | YQ-PE200 |
|---|---|---|---|---|
| Rated Capacity (kWh) | 50 kWh | 100 kWh | 150 kWh | 200 kWh |
| Max. Charge/Discharge (kW) | 50 kW | 100 kW | 150 kW | 200 kW |
| Nominal Battery Voltage (V) | 672 V | |||
| Continuous Charge/Discharge | 0.5C | |||
| Operating Voltage Range | 630 V ~ 756 V | |||
| Operating Temperature Range | -30°C ~ 50°C (Power reduction above 45°C) | |||
| Design Service Life | > 10 Years | |||
| Communication Interface | CAN2.0B | |||
| Cabinet Physical Dimensions | 1300 2400 1000 mm | |||
| Protection & Installation | IP54 / Suitable for Indoor & Outdoor Installation | |||
| Cooling Method | Forced Air Fan Cooling | |||
Applications
🏢 Commercial Offices
Avoid high commercial demand charges by managing load curves and utilizing stored solar energy during peak office hours.
🏭 Manufacturing & Factories
Ensures machine protection against power fluctuations and bridges temporary grid interruptions to maintain manufacturing yield.
🚦 Microgrids & Charging Hubs
Buffering capacity to lower stress on the local grid during high-speed EV charging sessions or off-grid setups.
FAQ
Why Partner with Us?
Customizable Solutions: We provide tailormade battery capacities and PCS configurations to match your specific load profile.
Certifications: Manufactured under strict quality control standards.
Ready to Optimize Your Energy Costs?
If you are looking for an OEM/ODM partner or have a specific project requirement, please click "Inquire Now" or email our engineering team. We provide free simulation and system sizing analysis based on your energy bills.
